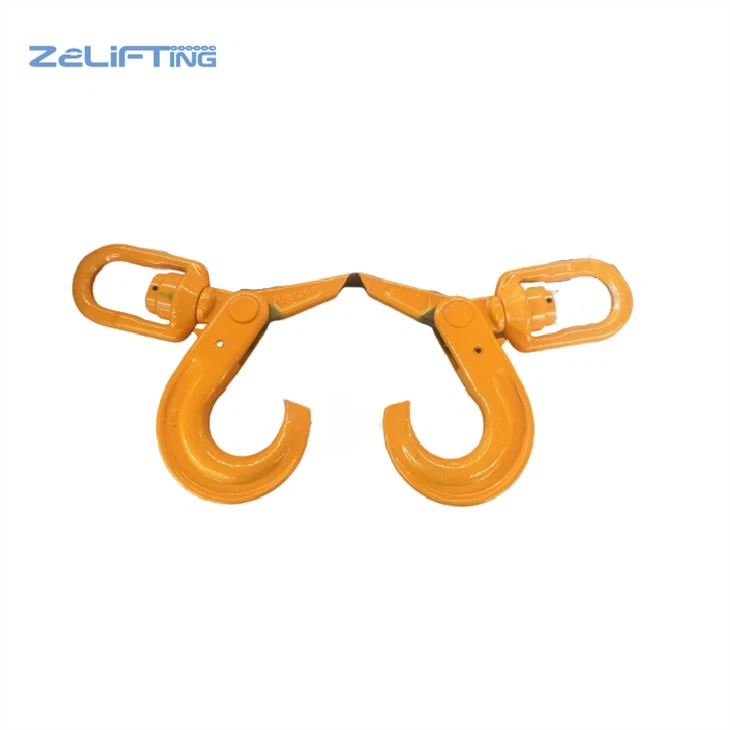

G80SWIVEL SELFLOCK HOOK Super alyaj asye- Trempe ak apeze Apwopriye pou chèn EN818-2 G80 Endividyèlman tès prèv nan 2.5 fwa travay Limit chaj Fatiuge teste nan 1.5 fwa, Travay Limit chaj pou 20000 sik Sifas fini: poud kouvwi fini |  |
GWO CHAIN (mm) | W.L.L (T) | M.B.L(T) | L±3 (mm) | H2±1 (mm) | D±1 (mm) | E ± 1.5 (mm) | T±1 (mm) | W2±1 (mm) |
6 | 1.12 | 4.48 | 153 | 24 | 11.3 | 28 | 34 | 32.5 |
7/8 | 2 | 8 | 189 | 29.5 | 12.5 | 36 | 46 | 36 |
10 | 3.15 | 12.6 | 224 | 35 | 15 | 45 | 56 | 42 |
13 | 5.3 | 21.2 | 267 | 41 | 16 | 52.5 | 69 | 50 |
16 | 8 | 32 | 356 | 57 | 21.5 | 63 | 86 | 61 |
18/20 | 12.5 | 50 | 378 | 63 | 26 | 86 | 100 | 72 |
22 | 15 | 60 | 466 | 98 | 33 | 76 | 98 | 97 |
26 | 21.2 | 84.8 | 544 | 115 | 42 | 96 | 110 | 123 |
32 | 31.5 | 126 | 679 | 146 | 52 | 135 | 166 | 140 |
G100 SWIVEL SELFLOCK HOOK Apwopriye pou chèn G100 25% pi fò pase G80 Endividyèlman tès prèv nan 2.5times travay Limit chaj Ftiuge teste nan 1.5times, Travay chaj pou 20000cycles Sifas fini: poud kouvwi fini |  |
GWO CHAIN (mm) | WLL(T) | B.L(T) | B | C | ∅ | E | F | M | N | K | L |
6 | 1.4 | 5.6 | 32.5±2 | 23±2 | 11.5±1 | 27±2 | 30±2 | 70±2 | 15±1 | 152.5±4 | 184±5 |
8 | 2.5 | 20 | 36±2 | 27.5±2 | 13±1 | 35±3 | 38±3 | 90±3 | 20±1 | 188±4 | 226±6 |
10 | 4 | 16 | 42±3 | 33±3 | 15.5±1 | 43±3 | 52±3 | 108±3 | 26±2 | 225.5±5 | 269±6 |
13 | 6.7 | 26.8 | 50±3 | 39±3 | 17±2 | 51.5±3 | 64±4 | 137.5±4 | 32.5±2 | 270±5 | 327±7 |
16 | 10 | 40 | 70±4 | 56±4 | 21.5±2 | 59±4 | 70.5±4 | 170.5±4 | 38±3 | 342±6 | 413±7 |
20 | 16 | 64 | 72±4 | 61±4 | 26±2 | 74.5±4 | 77±5 | 191.5±5 | 50±3 | 373±6 | 460±8 |
22 | 19 | 76 | 97±5 | 96±5 | 33±2 | 78±4 | 92±5 | 205±5 | 52±3 | 468±7 | 566±8 |
Anbalaj
 |  |
